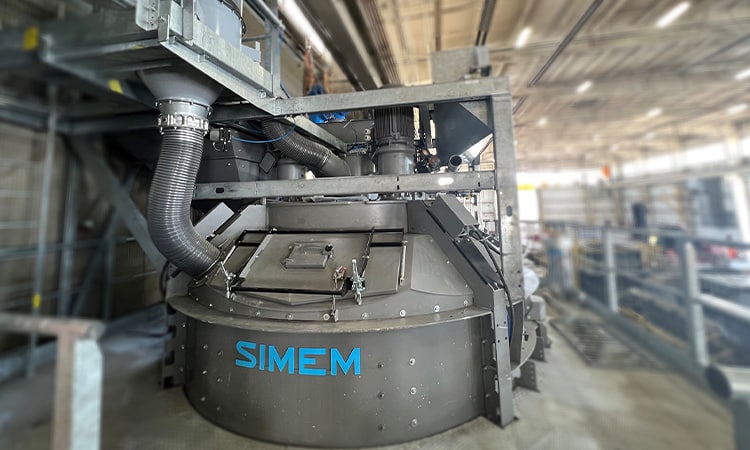

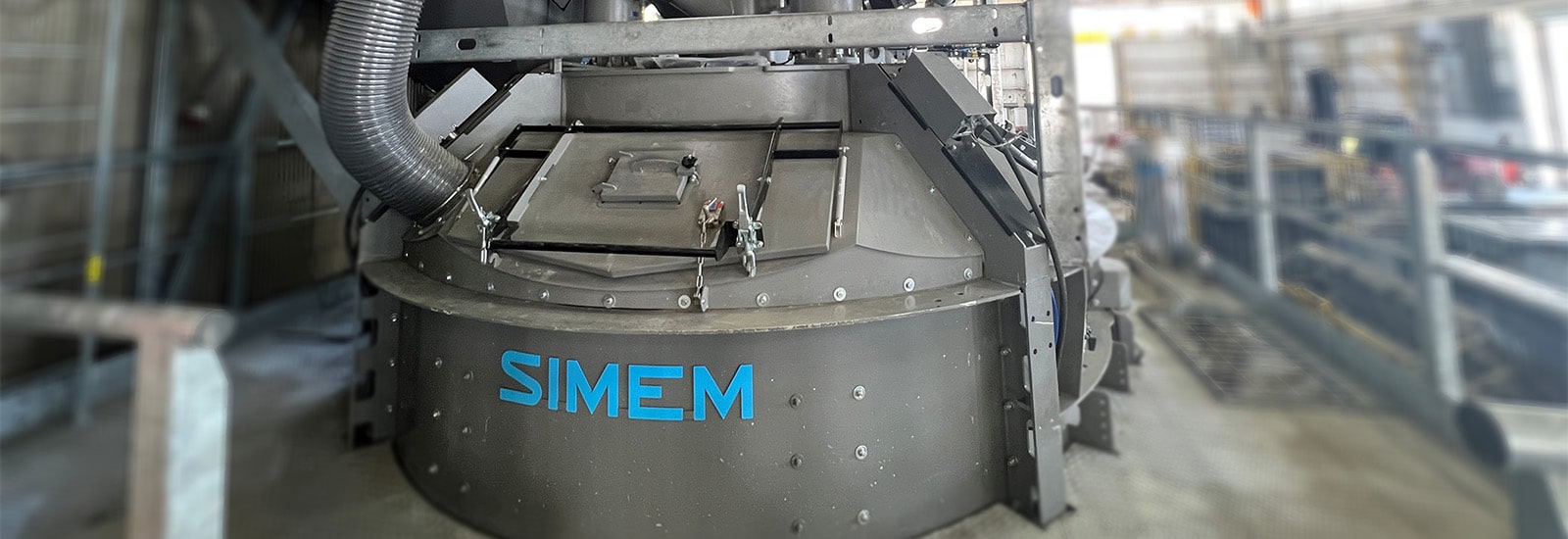

With features like central cement and water inlets, as well as a modular design, Xentrix has taken the planetary mixer to a new level – making it suitable for the production of precision concrete for tunneling and mining applications.
Features
Exclusive Design

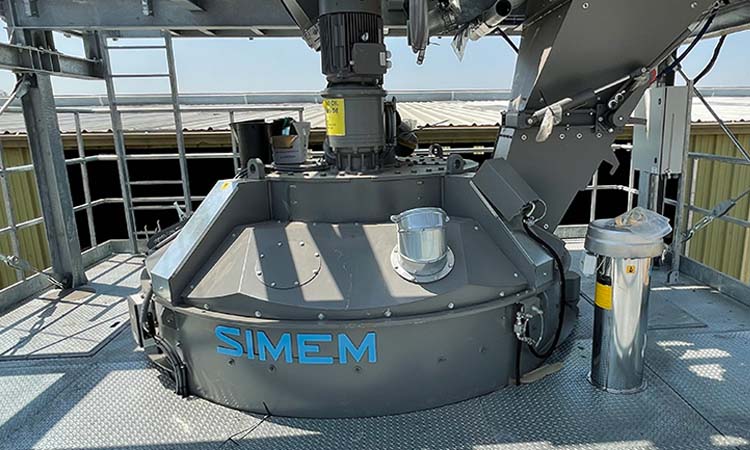

The design of Simem Xentrix planetary mixers has an off-center positioning of the main mixing arms for central charging of cement, water, and additives which makes it a leader in its class with the best possible mixing action. The mixing is highly efficient due to the integrated action of central satellites (1 or 2 depending on the model) in planetary rotation for a centrifugal effect. An innovative system which distributes water in a 360° umbrella pattern adds to mix efficiency and consistency.

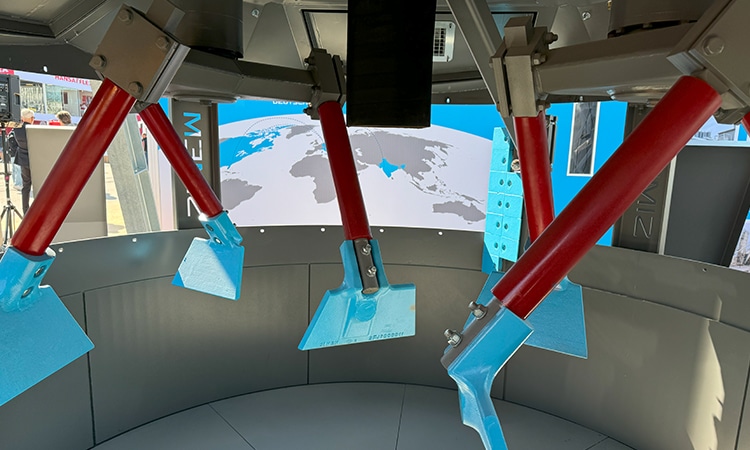

Mixing Paddles
Mixing paddles are made of cast iron or combination of a cast iron core lined with wear resistant rubber material, which optimizes the material flow.
Mixing Tank
Designed for optimal wear resistance, the tank is lined with interchangeable wear liners. A floor with a flexible configuration makes it possible to re-position the bolted liners, allowing for future discharge door addition. Oversized inspection doors ease access for maintenance, while inspection doors remain in tack.

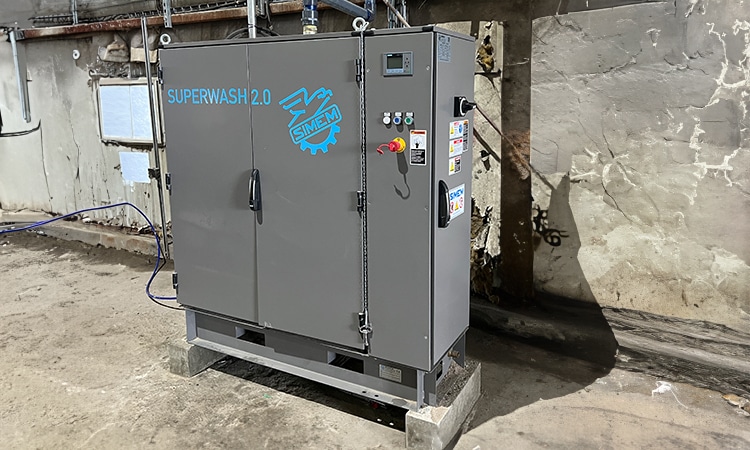

SuperWash and MixerMind Electronic Check
SuperWash, automatic washing unit, is available as option, with electric pumps, 16 gal water flow, 2900 psi water pressure, and touch screen control.
Specifications
| Model | X2001 | X2501 | X3002 | X4002 | X4502 |
| Dry filling capacity l/cy | 1,875/2.5 | 2,250/3.0 | 3,000/3.9 | 3,750/4.9 | 4,500/5.9 |
| Output capacity l/cy | 1,250/1.6 | 1,500/2.0 | 2,000/2.6 | 2,500/3.3 | 3,000/4.0 |
| Main mixing stars | 2 | 2 | 2 | 2 | 2 |
| Paddles per main mixing star | 3 | 3 | 3 | 3 | 3 |
| Secondary mixing stars | – | – | – | 2 | 2 |
| Paddles per secondary mixing star | – | – | – | 2 | 2 |
| Side scrapers | 2 | 2 | 2 | 2 | 2 |
| Mixer drive motors kW/hp | 2×22/30 | 2×30/40 | 2×44/60 | 3×30/40 | 3×37/50 |
